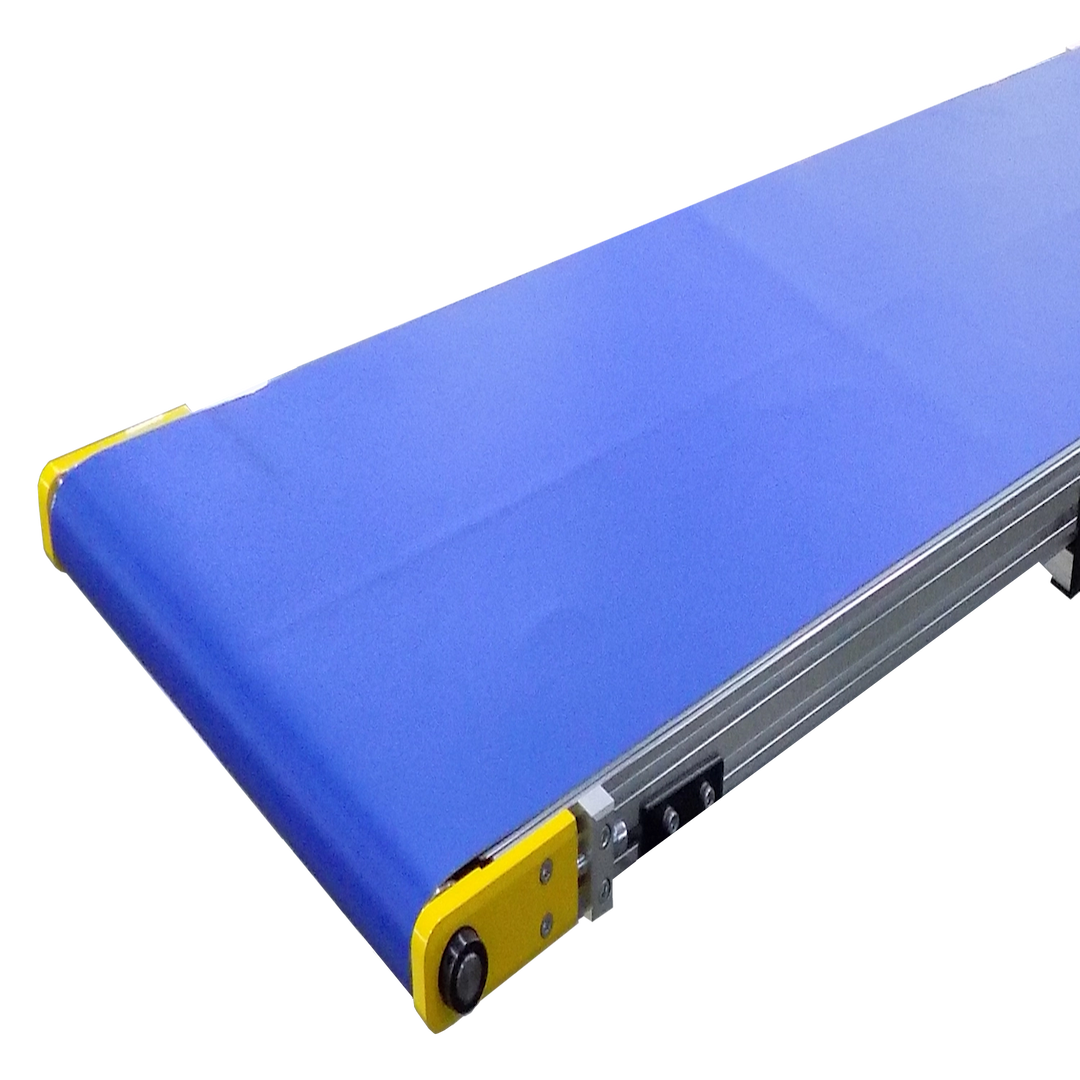

48 Series Flat Belt Tail End with Blue Belt

48s FB Tail End with Blue Belt.png

48 Series Flat Belt Conveyors find applications across various manufacturing processes for efficient material handling. This type of fabric belt conveyor serves as a vital tool for transporting diverse finished and unfinished products, commodities, or components of varying shapes and sizes. Direct Conveyors boasts an extensive range of belt materials and cleat options, empowering us to craft tailored conveyor solutions that precisely address your automation requirements. All conveyors are meticulously assembled and tested before shipment for quality insurance.&nbsp;
&nbsp;
<h2>Key Features and Components:</h2>
Compact Design: Designed with a low height aluminum extrusion, making it suitable for applications where space is limited or where items need to be conveyed under machinery or around obstacles. The belt widths are less than one inch from the frames which makes it easier for rails and components to get tight to the part.
&nbsp;
Diverse Applications: These conveyors find applications in various industries, including manufacturing, packaging, food processing, pharmaceuticals, and electronics, for tasks such as assembly, sorting, inspection, and transferring.
&nbsp;
Modularity: The design features modular components, making it easier to customize the conveyor's length, width, and features to match the requirements of the application. The standard 8.1mm slots in the extrusion makes it easy to mount accessories or components such as side rails, supports, sensors, etc.
&nbsp;
Maintenance: The simplicity of the design often leads to easier maintenance compared to more complex conveyor systems. Maintenance tasks might include belt replacement, tension adjustments, and periodic cleaning.
&nbsp;
Material Options: Belts can be made from a variety of materials, such as PVC, Urethane, Fabrics, or Rubber, depending on the type of products being conveyed and environmental conditions.

48s Flat Belt Engineering Manual.pdf

Motors Engineering Manual.pdf

Flat Belt Maintenance Manual.pdf

48s ESD Belt copy.png

48 Series Flat Belt End Drive with Black Belt

48s FB End Drive with Black Belt.png

48s FB Translucent.png

48 Series Flat Belt Center Drive with Green Belt

48s FB Center Drive with Green Belt.png

Cleated 48s FB Picture.png

Standard Widths: 48mm (1.8&rdquo;) to 650mm (25.6&rdquo;)
Standard Lengths: 450mm (17.7&rdquo;) to 11,000mm (433.1&rdquo;)

48 Series Flat Belt

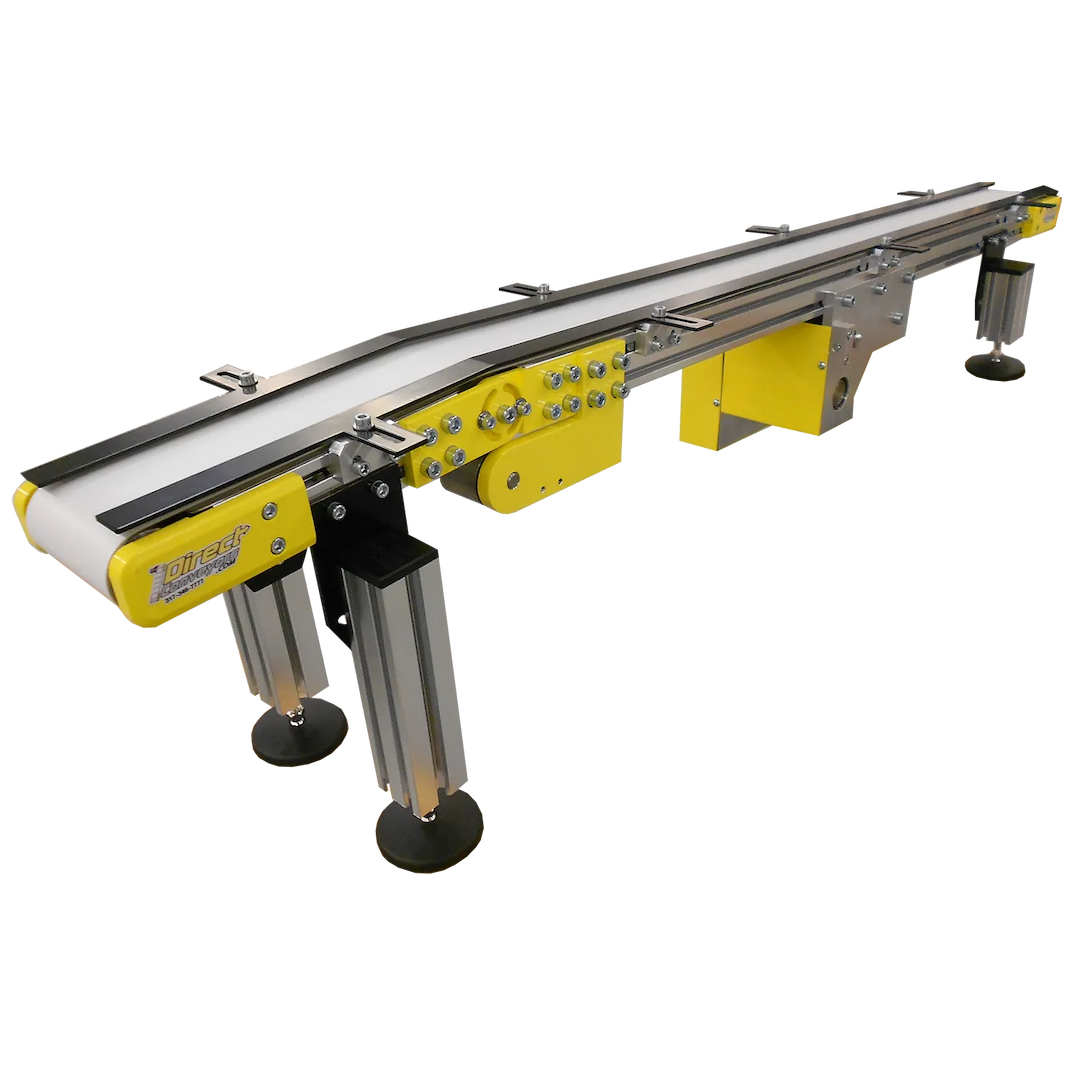

48s FB L Custom Incline.png

Direct Conveyors can provide a wide range of engineered solutions with standard components. Please reach out directly to the factory for assistance with your material handling application. &nbsp; &nbsp; &ldquo;L&rdquo; &amp; &ldquo;Z&rdquo;&nbsp; &ldquo;L&rdquo; and &ldquo;Z&rdquo; Conveyors are common for inclines and declines. High friction belts or cleated belts are used to move the product through the elevation change. &nbsp; &nbsp; 30/60 Series 30 Series and 60 Series Flat Belt Conveyors are very low profile for small part transfers. They are specialty designed for unique material handling needs. &nbsp; &nbsp; Backlight Backlight conveyors are used for vision systems. Mostly used for robotic picking or inspection. A wide variety of backlight widths, lengths, and colors are available. &nbsp; &nbsp; Vacuum Vacuum Conveyors are used to add a downward force to hold product to the belt when traveling. Mostly used with very light weight parts such as paper, bags, and cloth materials. &nbsp;
&nbsp;
For more information or inquiries, feel free to <img src="https://media.zipcpq.com/mdisk/qa/c2212457b76a1819/0d015d96f63a8c12d96b8399482b593f/Contact%20Us%20Icon.svg" alt="Contact Us" width="25" height="25" />

<table style="border-collapse: collapse; width: 100%; float: left;" border="1">
<tbody>
<tr style="text-align: left;">
<td style="width: 99.0225%; text-align: left; vertical-align: middle;">For more information or inquiries, feel free to <img src="https://media.zipcpq.com/mdisk/qa/c2212457b76a1819/0d015d96f63a8c12d96b8399482b593f/Contact%20Us%20Icon.svg" alt="Contact Us" width="25" height="25" /></td>
</tr>
</tbody>
</table>

48s FB Incline Custom Frame.png

Flat Belt Engineered Solutions


48 Series Indexing Timing Belt Conveyors employ AT10 Timing Belts equipped with M4 threaded inserts, enabling the incorporation of fixtures. This conveyor design is exceptionally suited for scenarios demanding precise indexing and accurate product positioning. Timing Belts feature steel wire reinforcement and v-guiding, ensuring robustness, strength, and exceptional belt tracking. The belts necessitate minimal tensioning, contributing to heightened process reliability and straightforward, cost-effective maintenance. Tailored profiles or fixtures can be specifically designed to align with the requirements of your application. Each conveyor unit is meticulously pre-assembled and tested before shipping, guaranteeing exceptional quality. &nbsp; Key Features and Components: &nbsp; Timing Belt: Like standard Timing Belt Conveyors, Indexing Timing Belt Conveyors utilize a toothed Timing Belt to drive the movement of items. The Timing Belt's teeth correspond to the notches on the conveyor's pulleys, ensuring precise and synchronized movement. Pulleys: Specialized pulleys are employed in the Indexing Timing Belt Conveyor to engage with the Timing Belt's teeth. These pulleys control the conveyor's movement and enable the precise positioning of items. Control Capability: The control capability stands as a vital element that oversees the indexing motion of the conveyor. Depending on the required accuracy for the specific application, standard motors or servos are frequently employed. Precision Positioning: Indexing Timing Belt Conveyors excel in accurate positioning and synchronization of items, ensuring consistent alignment for assembly, inspection, and packaging processes. Versatility: These conveyors are adaptable for various industries, accommodating different product sizes, shapes, and weights. Reliability: The positive engagement between the Timing Belt and the pulleys ensures reliable movement and eliminates belt slippage. &nbsp;

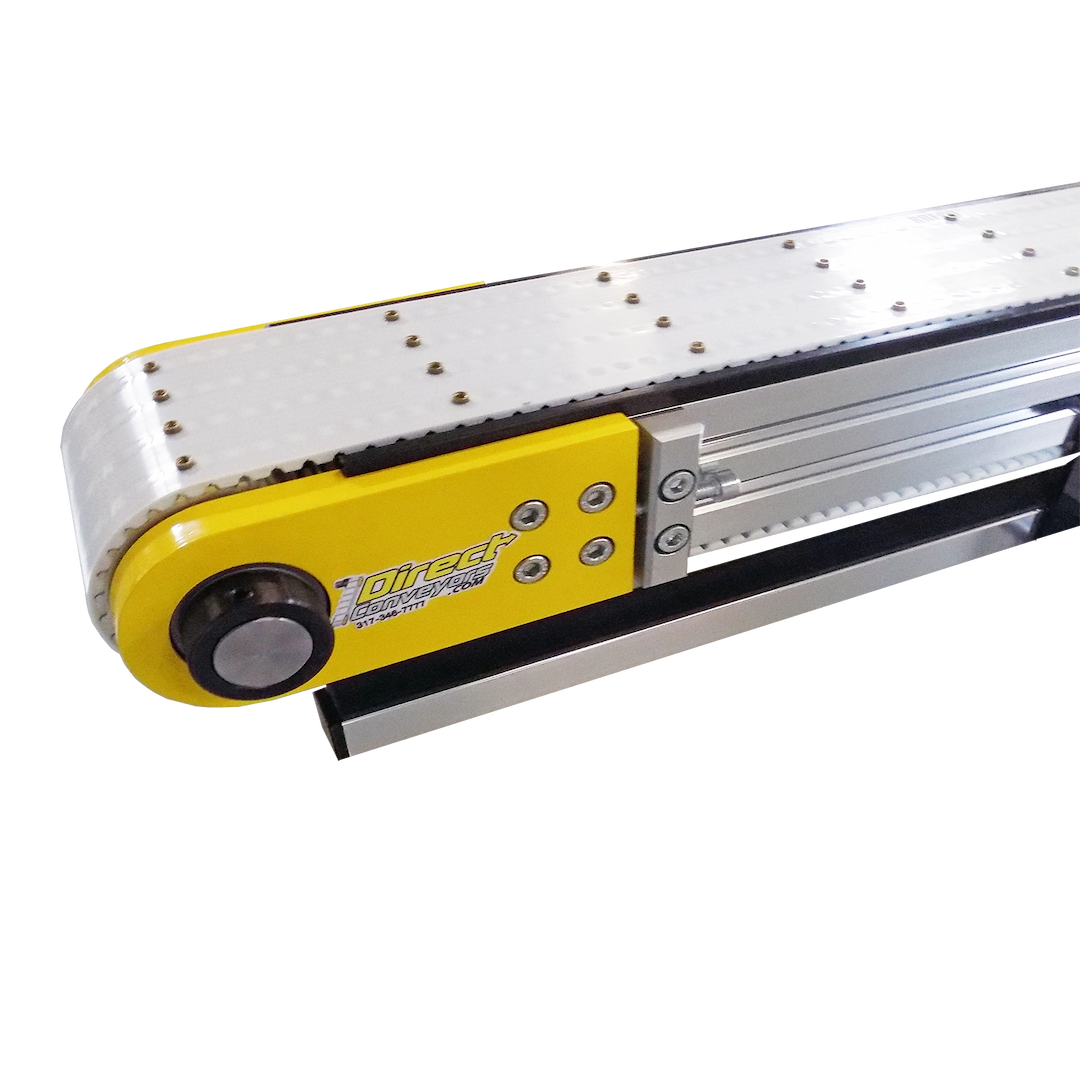

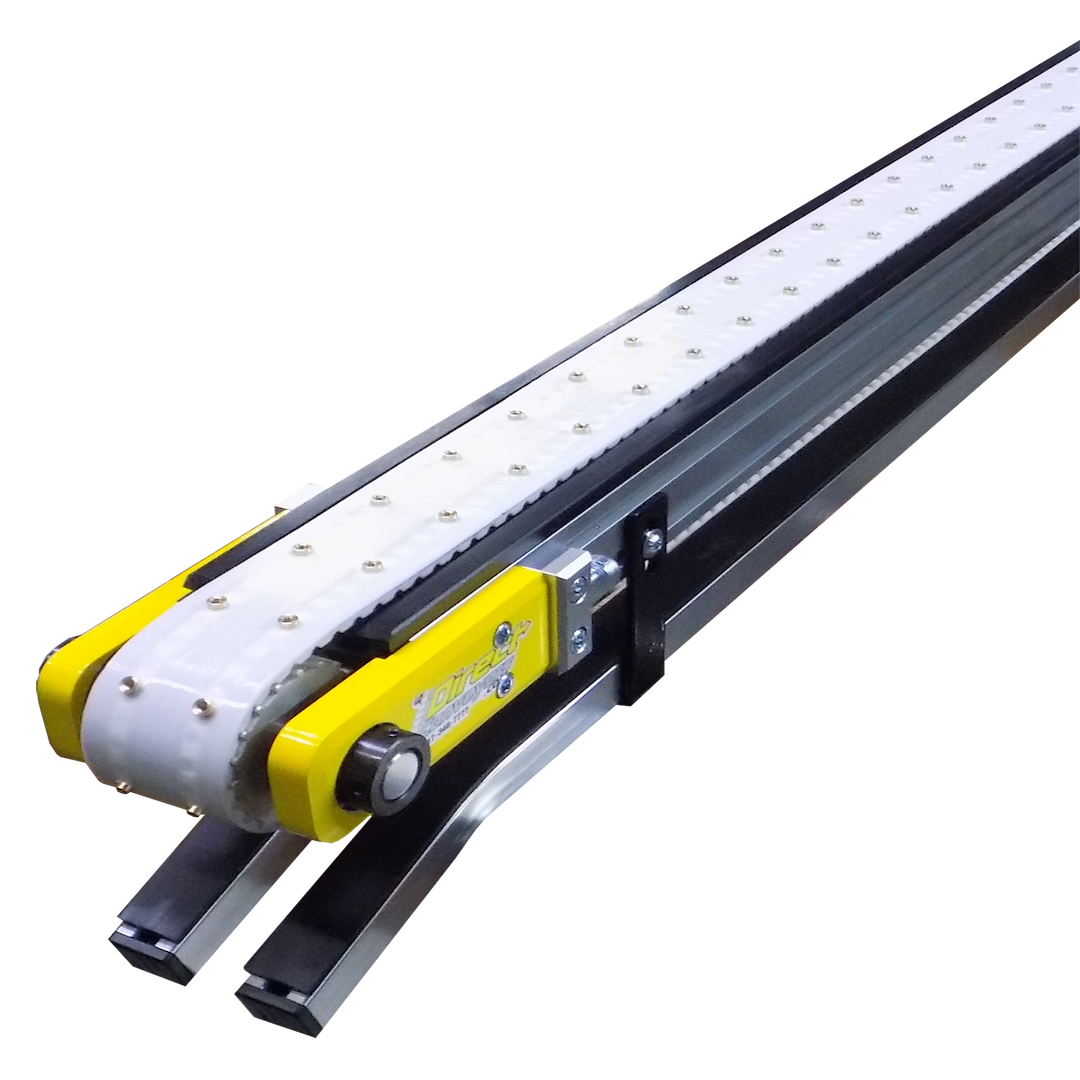

48 Series Indexing Timing Belt 75mm Direct Drive


48 Series Indexing Timing Belt Side Mount Down Fixtures


Indexing Timing Belts Manual.pdf

48s Indexing Timing Belt Engineering Manual.pdf

Standard Widths: 48mm (1.8&rdquo;) to 117mm (4.6&rdquo;)&nbsp; Standard Lengths: 585mm (23&rdquo;) to 11,000mm (433.1&rdquo;)

48 Series Indexing Timing Belt

74 Series Flat Top Chain Steel Straight Running


The 74 Series Straight Running Flat Top Chain Conveyors are robust systems suitable for diverse applications.
 They can be set up in either single lane or multiple lane configurations.
The Flat Top Chains, available in Carbon Steel, Stainless Steel, and Plastic, feature a seamless riding surface.
This conveyor design excels in challenging environments and can handle substantial loads.
Each conveyor unit is meticulously pre-assembled and tested before shipping, guaranteeing exceptional quality.
&nbsp;
Key Features and Components:
&nbsp;
Versatility: These conveyors are suitable for various industries and applications, such as manufacturing, packaging, food, and beverage, automotive, and more.
Flexibility: The modular design of the Flat Top Chain allows for easy customization and configuration to accommodate different layouts, curves, inclines, and declines.
High Load Capacity: Flat Top Chain Conveyors can handle heavy loads and large quantities of materials, making them suitable for both light and heavy-duty applications.
Easy Maintenance: Designed to reduce maintenance requirements. Individual chain segments can be easily replaced if damaged.
Reduced Friction: Flat Top Chains are low friction design reduces wear and tear on both the chain and the items being transported.
Accumulation and Sorting: These conveyors can be designed to allow accumulation of products or even sorting capabilities, enabling efficient material flow management.
Multiple Chain Types: There are different types of Flat Top Chains available, including those made from materials like Plastic, Steel, or Stainless Steel, each suitable for specific applications and environments.

74s Straight Running Flat Top Chain Engineering Manual.pdf

74 Series Flat Top Chain Straight Running Plastic

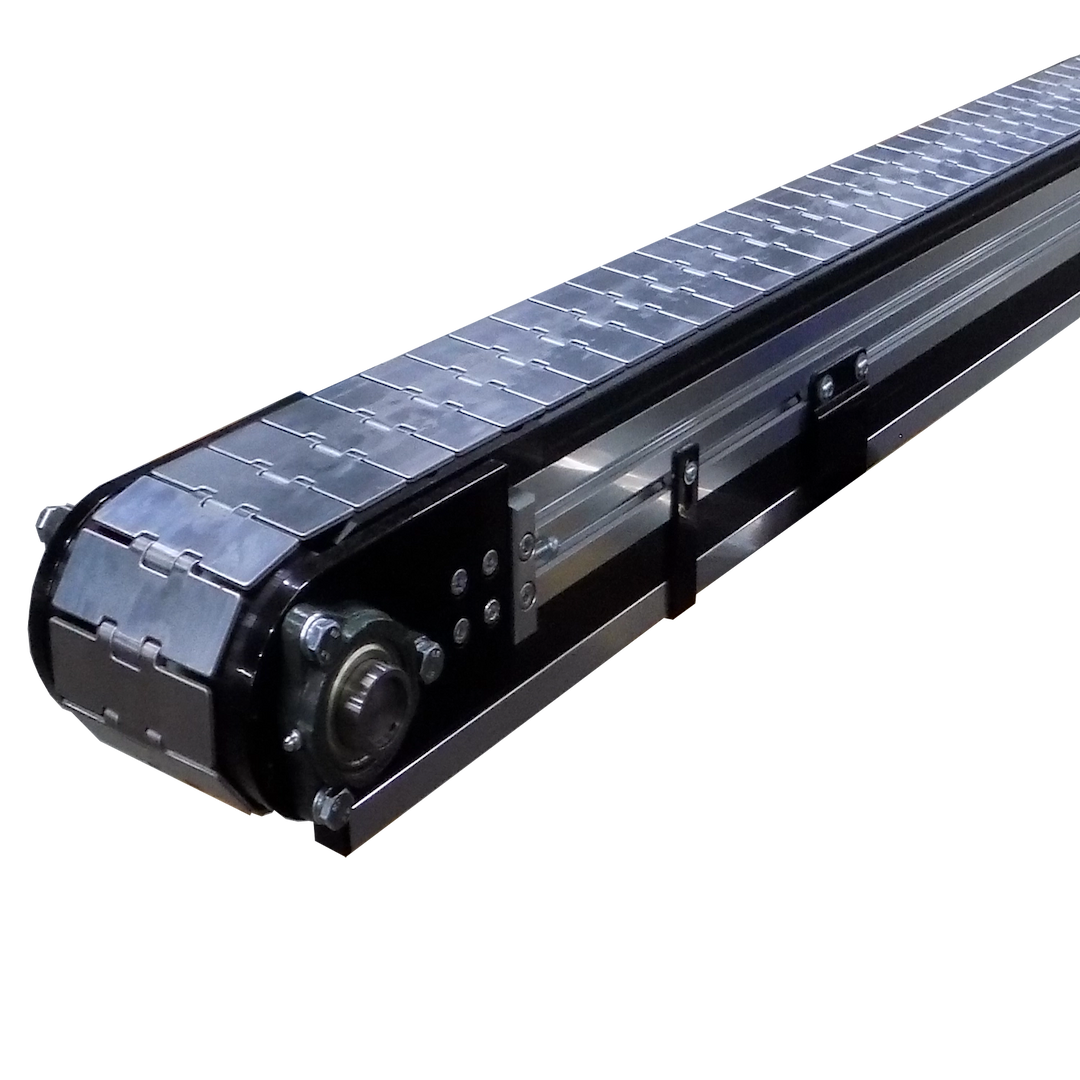

74 Series Flat Top Chain Steel Straight Running Direct Drive


Straight Running Standard Frame Widths: 48mm (1.9&rdquo;), 96mm (3.8&rdquo;),
130mm (5.1&rdquo;), 170mm (6.7&rdquo;), 210mm (8.3&rdquo;), 275mm (10.8&rdquo;), 325mm (12.8&rdquo;)&nbsp;

Conveyor Configurator
